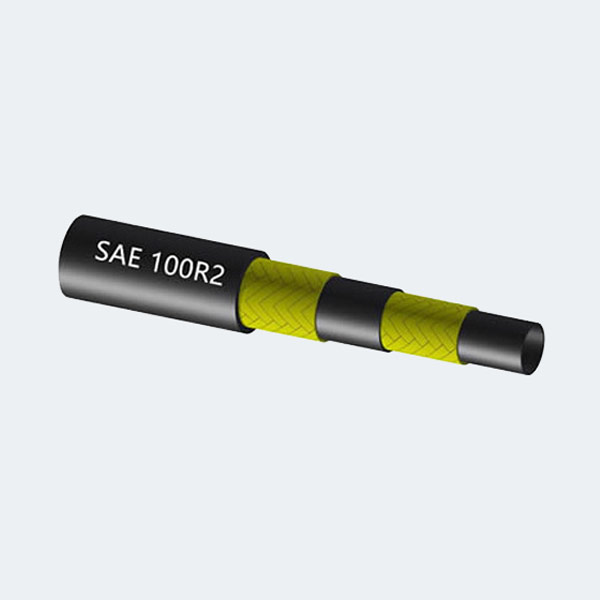

Structure: it is composed of three parts: tube, reinforcement and cover.
– Tube: high quality synthetic rubber, making the hose resistant to abrasion, corrosion and oils.
– Reinforcement: two layers of high tensile braided steel wires, making the hose have excellent performance in high pressure working conditions.
– Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, cut, aging, weather and ozone.
Working temperature: 40 °C to +100 °C.
Key Features
- Construction:
- Tube: Oil-resistant synthetic rubber
- Reinforcement: Two high-tensile steel wire braids
- Cover: Abrasion-, oil-, and weather-resistant synthetic rubber
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Meets Standards: SAE J517 Type R2 / SAE 100R2AT / EN 853 2SN
- Inner Diameter Range: ¼” to 2”
- Working Pressure: Up to 415 Bar (varies by size)
- Compatibility: Suitable for petroleum-based and water-based hydraulic fluids
Applications
The SAE 100R2 hydraulic hose is widely used in high-pressure hydraulic systems requiring maximum strength and flexibility. Common applications include:
- Hydraulic oil lines in industrial and mobile systems
- Earthmoving and construction machinery
- Agricultural and forestry equipment
- Material handling and lifting systems
- Mining and marine hydraulic applications
- Automotive and heavy-duty trucks
Advantages of CALCUTTA HYDRAULICS SAE 100R2 Hose
- High-pressure performance with dual steel wire reinforcement
- Exceptional flexibility for easier routing and installation
- Superior resistance to oil, abrasion, and weathering
- Durable outer cover for extended service life
- Leak-free operation when used with compatible hydraulic fittings
- Available in custom lengths and assemblies to meet application requirements
