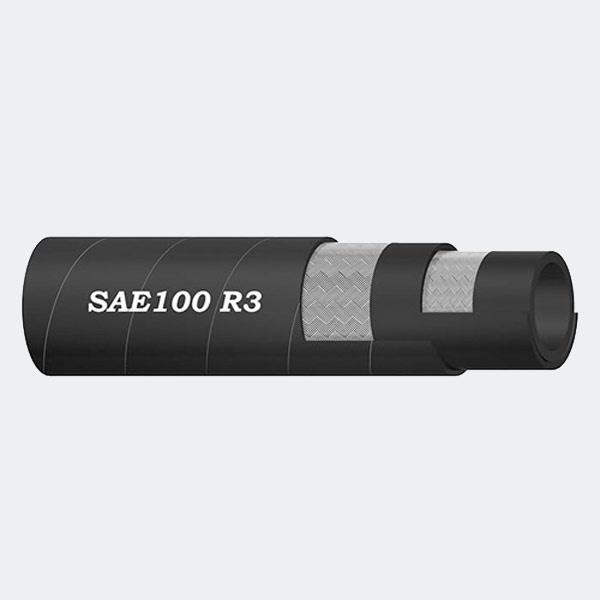

SAE 100 R3 Hydraulic Hose is a high-quality textile braided hydraulic hose designed for low to medium pressure hydraulic and pneumatic applications. SAE 100 R3 hose should be used with petroleum- or water-based hydraulic fluid. It offers excellent flexibility, abrasion resistance, and reliable performance in a variety of operating environments.
Key Features
- Construction:
- Tube: Oil-resistant synthetic rubber
- Reinforcement: Single layer of high-tensile steel wire braid
- Cover: Abrasion-, oil-, and weather-resistant synthetic rubber
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Standards: SAE J517 Type R3 / SAE 100R3
- Inner Diameter Range: ¼” to 1½”
- Working Pressure: Up to 275 Bar (varies by size)
- Compatible Fluids: Petroleum-based and water-based hydraulic fluids
Applications
The SAE 100R3 hydraulic hose is widely used in medium-pressure hydraulic systems across various industries. Common applications include:
- Hydraulic oil lines in industrial equipment
- Construction and earthmoving machinery
- Agricultural and forestry equipment
- Material handling and lifting systems
- Automotive and mobile hydraulic systems
Advantages of CALCUTTA HYDRAULICS SAE 100R3 Hose
- Medium-pressure capability with reliable steel wire reinforcement
- High flexibility for easy routing and installation
- Oil, abrasion, and weather-resistant for long-lasting performance
- Smooth inner tube for efficient fluid flow
- Custom hose assemblies available with compatible fittings
- Reduced risk of leaks and downtime
