Key Features
- Construction:
- Tube: Oil-resistant synthetic rubber
- Reinforcement: Four or six alternating layers of high-tensile steel wire spiral reinforcement for maximum pressure capacity
- Cover: Abrasion-, oil-, ozone-, and weather-resistant synthetic rubber
- Temperature Range: -40°C to +121°C (-40°F to +250°F)
- Meets Standards: SAE J517 Type R13 / EN 856 R13
- Inner Diameter Range: ½” to 2”
- Working Pressure: Up to 5000 PSI (varies by size)
- Fluid Compatibility: Suitable for petroleum-based, water-based, and synthetic hydraulic fluids
Applications

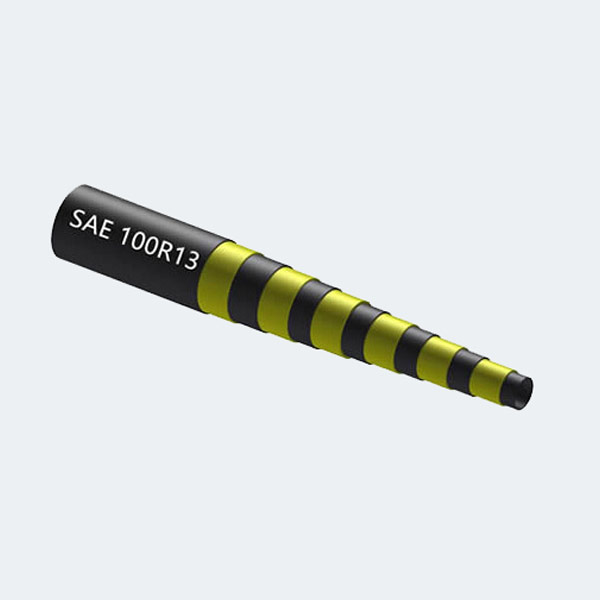

The SAE 100R13 Four or Six Spiral Hydraulic Hose is built for extreme pressure and high-impulse applications where strength and reliability are critical. Common applications include:
- Heavy-duty construction and earthmoving machinery
- Hydraulic systems in mining and drilling equipment
- Agricultural and forestry machinery
- Industrial hydraulic presses and power units
- Offshore and marine hydraulic systems
- Material handling and lifting equipment
Advantages of CALCUTTA HYDRAULICS SAE 100R13 Spiral Hose
- Superior high-pressure performance for heavy-duty applications
- Exceptional flexibility for easier routing in compact systems
- High resistance to abrasion, oil, and extreme temperatures
- Extended service life even under continuous heavy use
- Leak-proof performance when paired with genuine hydraulic fittings
- Custom-built assemblies available for specific industrial applications
